Overview

Glass UI is VRseBuilder’s modern UI system featuring real-time blur effects and a sleek, translucent aesthetic. This guide covers setting up Glass UI for the Main Menu scene and upgrading existing UI screens to use Glass UI components.

​
How Glass UI Works

Glass UI creates a frosted-glass effect by sampling from a dedicated Render Texture. A separate Blur Camera renders only environment objects (on the Props layer) into this texture, which Glass UI materials then sample to produce the blur effect behind UI panels. This architecture means:
  • Environment objects must be on the correct layer for blur to render
  • VFX and non-essential objects are excluded to preserve performance
  • A fallback solid-color mode is available for heavy scenes

​
1. Main Menu Scene Setup

The fastest way to get started is using the pre-configured Glass UI menu scene. 1

​
Steps

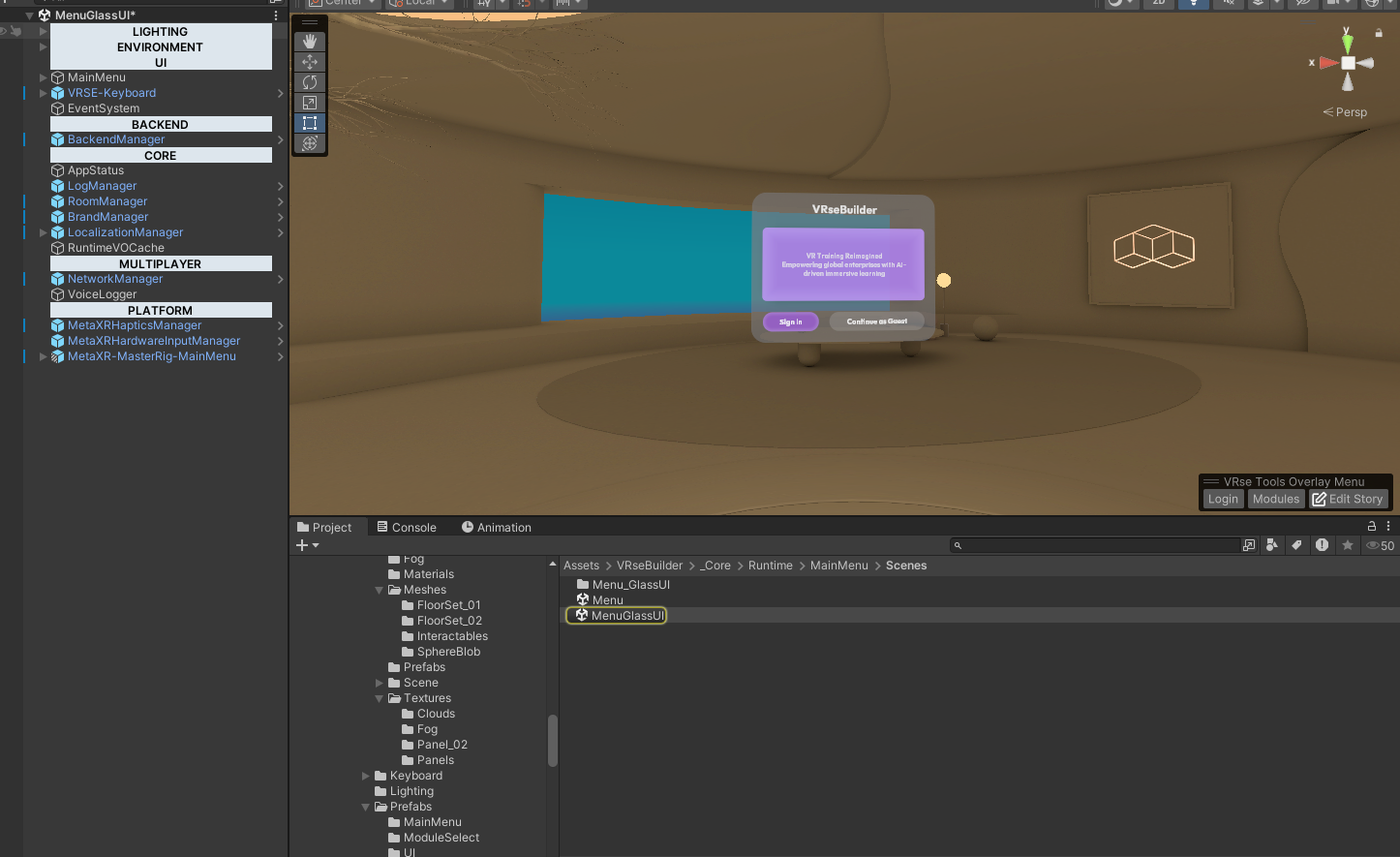

  1. Open your project and navigate to: Assets/VRseBuilder/_Core/Runtime/MainMenu/Scenes/MenuGlassUi

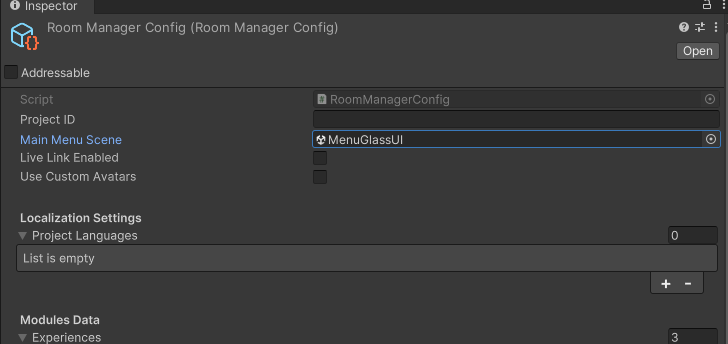

  2. Open Room Manager and set your Target Room config.
  3. In the config file, update the menu scene reference to point to the Glass UI menu scene.
  4. Configure your Login Type as needed.
Note: The Glass UI menu scene comes fully configured—no additional blur or material setup is required.
2

​
2. Upgrading Existing UI to Glass UI

Use the built-in upgrade tool to convert existing UI screens to Glass UI.

​
Steps

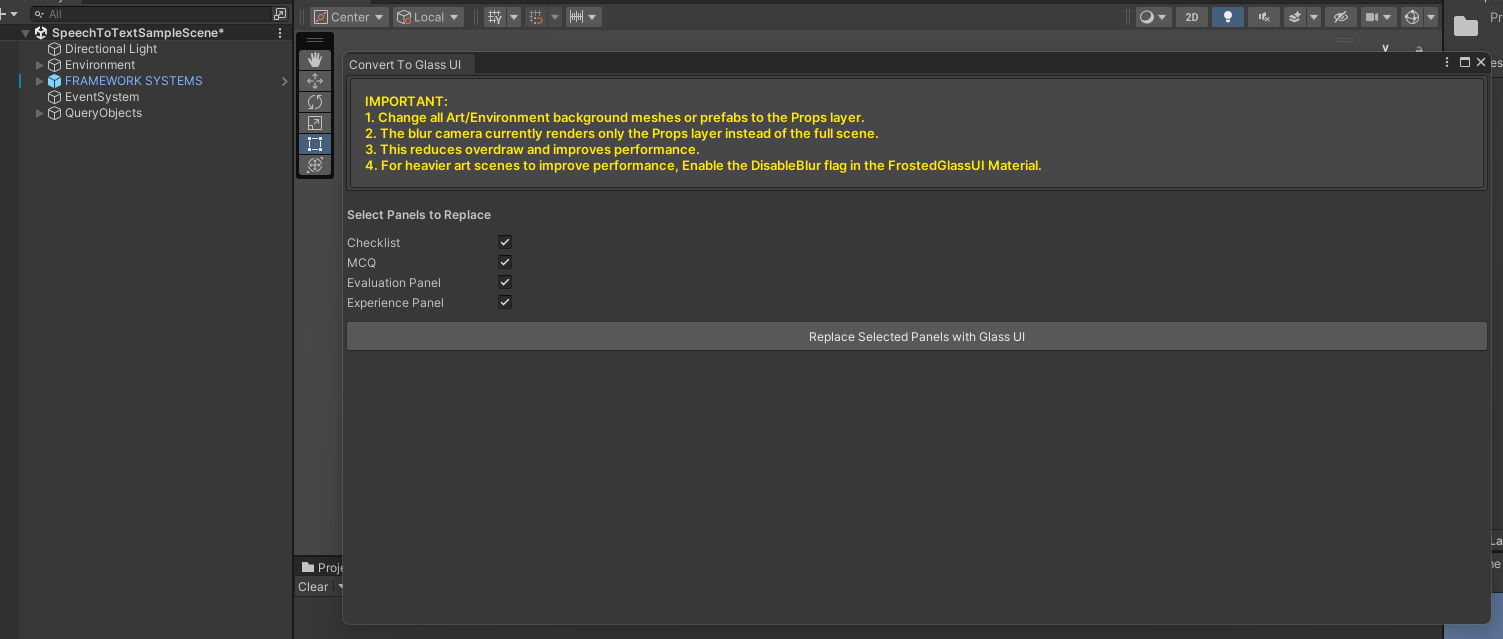

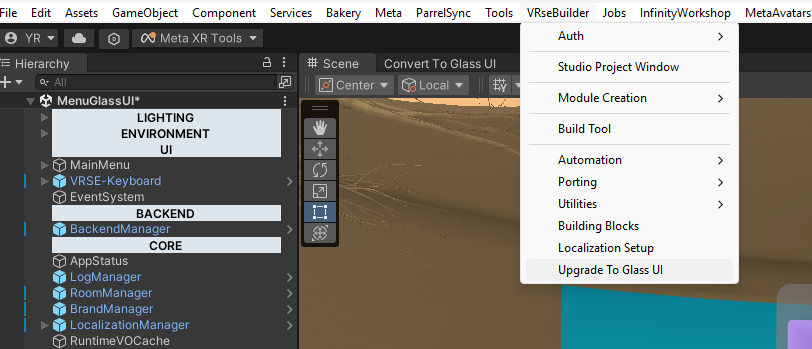

  1. Open the upgrade tool via VRseBuilder → Upgrade To Glass UI.
  2. Click Upgrade to Glass UI.
  3. Select the UI element(s) to upgrade.
  4. Click Upgrade.
3

​
What Happens During Upgrade

  • Selected UI elements are replaced with Glass UI equivalents at the same positions
  • Original UI GameObjects are disabled, not deleted
  • This ensures easy rollback if needed
  • Only the following pre-made UI are supported at the moment:
    • Checklist
    • MCQ
    • Evaluation Panel
    • Experience Panel
4
Important: The Story Creator will still reference the old UI objects after upgrade. You must manually update Story Creator references to point to the new Glass UI objects—failing to do this will cause runtime logic or flow issues.

​
3.Performance Setup (Required)

Proper layer configuration is mandatory for Glass UI blur to function correctly.

​
Environment Layer Configuration

All environment objects in your scene must be assigned to a layer named:
Props

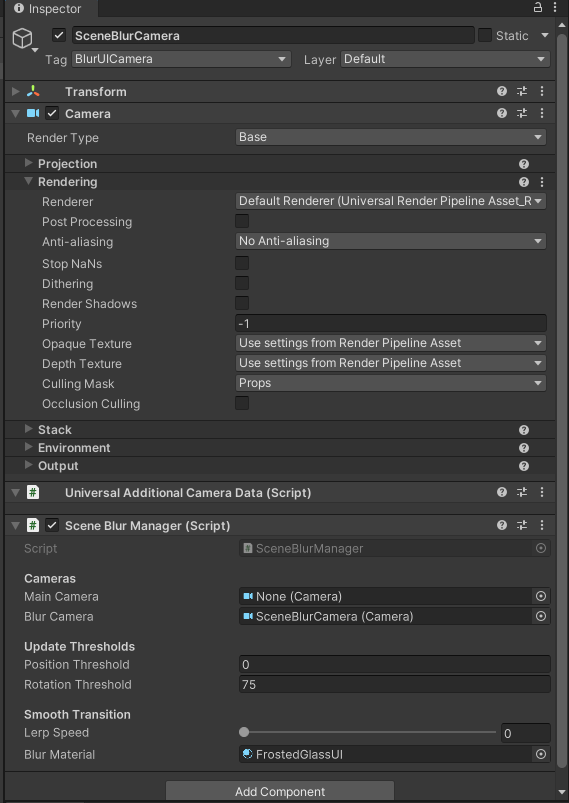

The SceneBlurCamera prefab is added automatically during setup with the required references. 7

​
Why This Matters

The blur effect depends on a Render Texture generated by a dedicated Blur Camera. To optimize performance:
  • Only environment objects should be rendered by this camera
  • VFX, UI, and other non-essential layers are excluded

​
Consequences of Incorrect Setup

If environment objects are not on the Props layer:
  • Blur will not render correctly, or
  • Performance will degrade significantly due to unnecessary rendering
Important: Always verify your environment objects are on the Props layer before testing Glass UI. This is the most common cause of blur issues.

​
Materials, Shaders, and Templates

All Glass UI materials and shaders ship with sensible defaults. No manual tweaking is required to get started. You can use the shaders present here to make your custom UI, or use some existing prefabs which work out of the box with the system

​
Pre-Made Templates

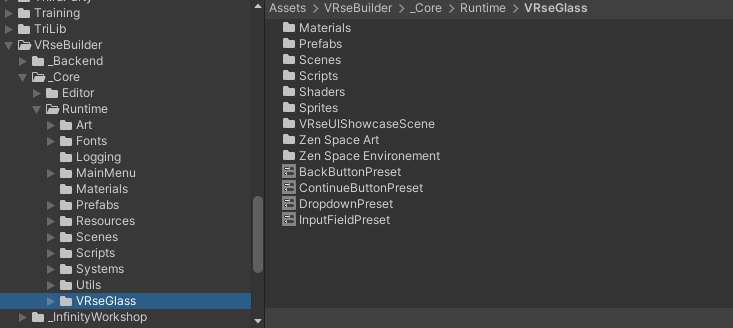

The system includes ready-to-use Glass UI templates located in the VRseGlass folder - Open your project and navigate to: Assets/VRseBuilder/_Core/Runtime/VRseGlass
  • Buttons
  • Panels
5 Use these templates as a base when creating custom Glass UI elements.

​
Blur Control and Fallback

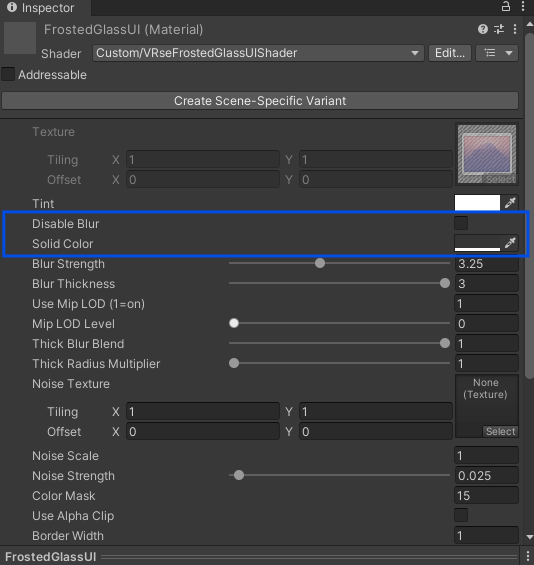

A Disable Blur flag is available on Glass UI materials for performance-critical scenarios.

​
When Blur Is Disabled

  • The blur texture is not sampled
  • UI displays the solid color assigned in the material instead
6
Tip: Use this fallback for heavy art scenes or when targeting lower-end hardware where blur sampling would impact frame rate.

​
Troubleshooting

IssueSolution
Blur not renderingVerify all environment objects are on the Props layer
Performance issuesEnable Disable Blur flag or reduce objects on Props layer
Story Creator broken after upgradeManually update references to new Glass UI objects
Old UI still visibleEnsure old GameObjects are disabled (they are kept for rollback)
